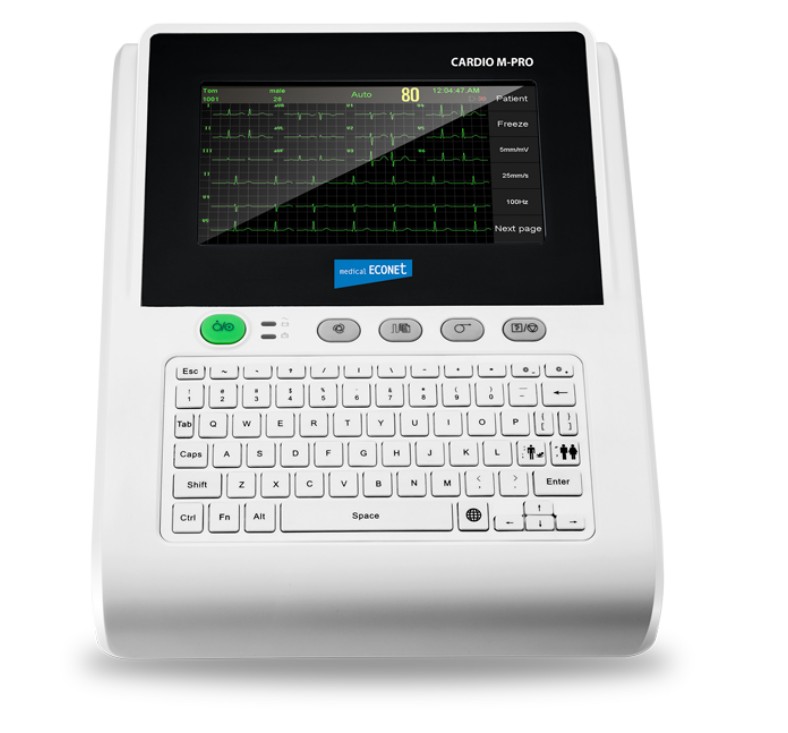

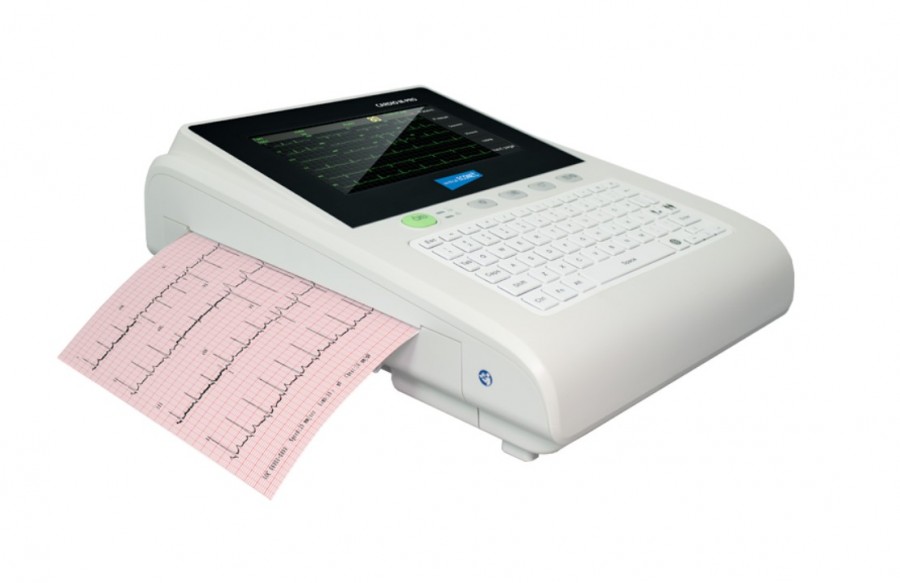

CARDIO M-PRO
№ - 30.11-2300
CARDIO M-PRO
"CARDIO M-PRO"
• 12, 6 and 3 channel resting ECG
• 8" LCD color touch screen
• Write-out of all 12 channels among each other or in packages (2x6, 3x4)
• Clearly arranged, high printout in DIN A4 format
• Printout of rhythm derivarion for 3- and 6-channel settings
• Manual ECG monitoring or 10 seconds memory ECG for interpretation
• Automatic interpretation recommendation
• Interpretation function distinguishes between 25 diagnostic cases based on Minnesota protocol
Dimensions: 360 x 276 x 130 mm (WxHxD) approx. 4,2 kg
Screen: 800 x 480 pixels
Measurement parameters: HF, PR Interval, Duration of QRS-complex, QT/QTC, electrical R/QRS/T-axis, RV5/SVI amplitude
Battery: Lithium-ion - Approx. 5 gours runtime when fully charged or up to 500 printed ECG reports in automatic mode
Connection: 1x SD card / 2x USB / 1x RJ-45 (network)
Included are:
• ECG patient cable
• Power cord
• 6x chest wall suction electrodes
• 4x extremity clamb electrodes
• Manual
• Paper
• ECG gel
