Cardio M PC
№ - Cardio M PC
Medical Econet
Resting ECG software
Incl. USB-ECG

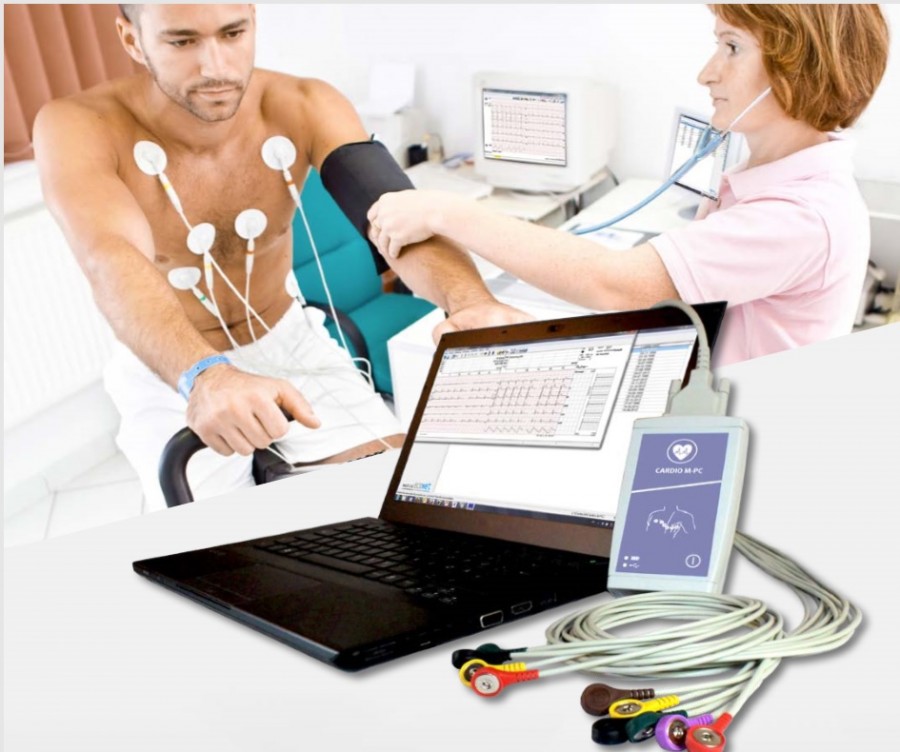

The most modern combination of microelectronics and a supreme ECG software. Cardio M-PC is an ideal module to record and analyze recorded ECGs. It meets all the requirements of modern PC technology.
network access to all data
- take-over of all patient data via HL7
- order management
- return of clinical reports to HIS or office operation systems
- easy export and record as HTML site
- 12-channel resting ECG with interpretation
- emergency ECG
- heart rate variability
- arrhythmia detection
- stress ECG with ST segment monitoring
- control of ergometers, treadmills, and blood pressure monitors
- mobile ECG (with a notebook)
- extensible with (spirometry, holter ECG and blood pressure)
- acquisition of patient data via HL7
- easy to export images as HTML or PDF
Sampling rate 2000 Hz per channel
Input impedance > 10 MOhm
Precision 0,05 μV/bit
A/D converter 24 Bit
Patient protection floating common (IEC-601, BF type)
Shock protection Class II
Defibrillator protections 5 kV (max. 1kV/msec)
Resolution 2,44 μV/bit (12 bit A/D)
CMRR > 120 dB
Polarization voltage 400 mV
Time constant 1,6 sec
Linearity error < 0,5% < ½ LSB
Filters 524 Hz low pass (hardware, constant) 50, 100, 200 Hz (changeable) 60, 120 Hz (changeable) 35 Hz tremor (changeable)
Leads 12 Standard, Frank, Nehb
PC Connection via USB
Power supply via USB port: + 5 V (100 mA)
ECG Connection 15 pin standard
LED Status indication yellow LED slow blinking = USB connected solid light = ECG monitoring
Safety IEC 601, class II, Type BF
Dimensions 131 x 73 x 25 mm
Weight 140 g Software
Measurement / Interpretation Mortara-Rangoni (also for children > 2 years))
Interface functions GDT, HL7, DICOM, HRV, Arrhythmia detection, 2D / 3D ECG vector, emergency ECG, ECG report transmission via Internet, ergometry PC-requirements
Operating system Windows 7, Windows 8
Processor min. 1,6 GHz Dual Core
Memory min. 2 GB RAM
Hard disc min. 500 GB
Interface 1 x free USB port
