ECG90A
№ - cpocket3

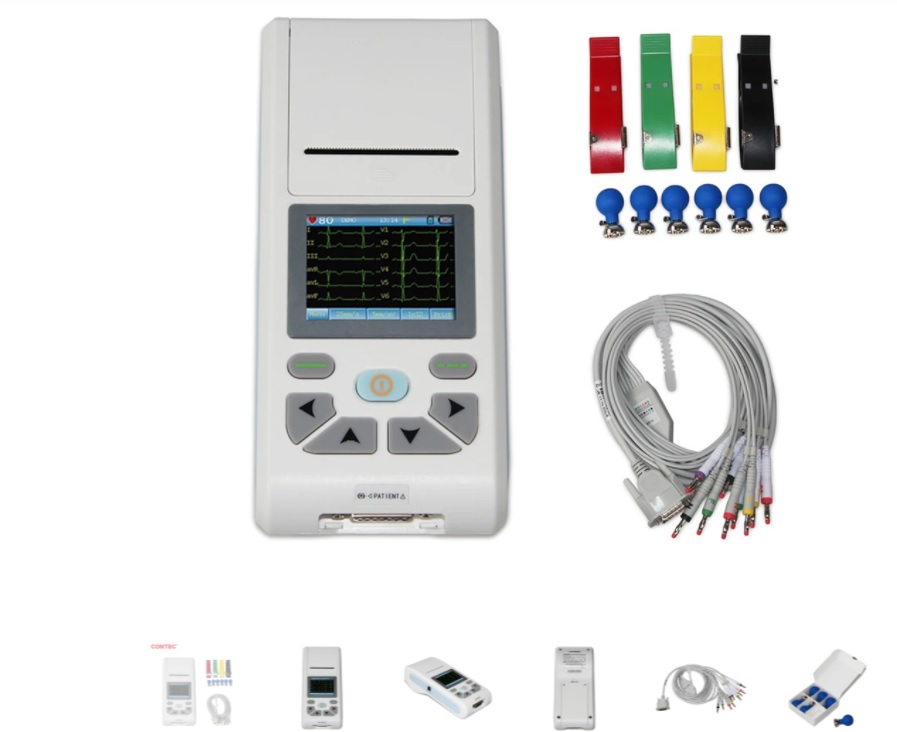

ECG&EKG Machine Electrocardiograph Sync PC Software
Price:
506.17 €
-Input mode: floating and defibrillation protection
Frequency response: 0.05Hz ~ 150Hz(-3dB~+0.4dB)
CMRR: >60dB, >100dB(add filter)
Time constant:≥ 3.2s
Patient leak current: <10µA
Calibration voltage: 1mV
Sensitivity: 5, 10, 20 mm/mV ±5%, standard sensitivity: 10mm/mV±2%
Noise level: ≤15µVp-p
Input circuit current: ≤50nA
Input impedance: ≥50MΩ
Sampling accuracy: 12-bit
Safety classification: class I, type CF and defibrillation-proof applied part
Recording mode: thermal printing system
Measurement parameters: HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
Paper size: 50mm(W)×20m(L)
Sampling frequency: 1000Hz
Polarizing voltage: ±500mV
EMG interference filter: 25Hz/35Hz (-3dB)
Power frequency filter: AC 50Hz/60Hz(-20dB)
Paper speed:
Auto: 6.25, 12.5, 25, 50mm/s, ±5%
Manual: 6.25, 12.5, 25, 50mm/s, ±5%
Power supply: DC 12V adapter, 7.4V/2000mAh rechargeable lithium battery
Waterproof degree: IPX0
Working mode: continuous working
